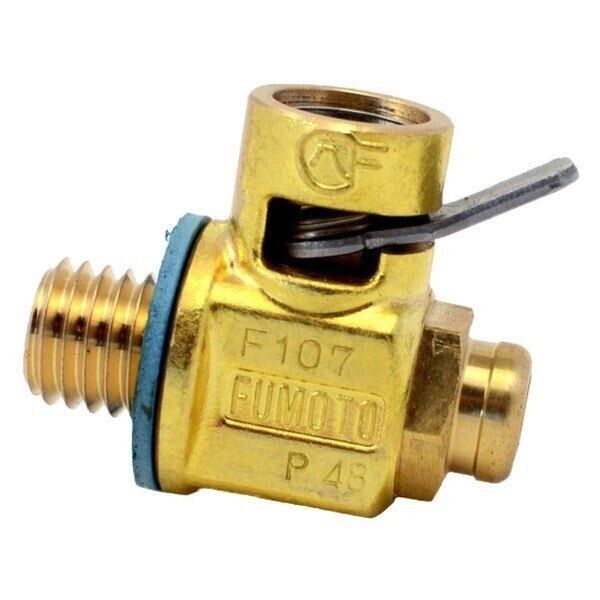

Fumoto F107S Oil Drain Valve M12-1.75 Ford Cadillac Chevrolet Mazda Pontiac

Fumoto F107S Oil Drain Valve M12-1.75 Ford Cadillac Chevrolet Mazda Pontiac

$28.75
SKU F107S(01

Please contact us to see whether an adapter is required for your application for clearance purposes.

Superseded to F-137S****

Used on Buick, Cadillac, Chevrolet, Ford, GMC, Jaguar, Lincoln, Mazda, Mercury, Oldsmobile, Pontiac, and Saturn



M12-1.75 DRAIN VALVE W/SHORT NIPPLE

Incorporating Fumoto's most compact ball valve, Fumoto's S series valves are designed to fit cars, light trucks, vans and select commercial engines. The S series offers a short 5mm nipple which allows you to attach a hose for convenient draining. S series are designed especially for general automotive users concerned about low ground clearance. Constructed of forged brass and stainless steel to exacting Japanese specifications, S series valves are designed to provide a lifetime of dependable and reliable service. To use the S valve simply attach a hose to the nipple or use the optional SH-10 plastic socket and snap it onto the valve nipple.

Specifications

  • Diameter: 12 mm
  • Thread Pitch: 1.75
  • Gasket: 12 mm
  • Nipple Dimension: 3/8" - 10 mm
  • Nipple Length: 1/5" - 5 mm
  • Weight: 2.5 oz

The Fumoto Engine Oil Drain's spring assisted ball valve replaces your standard issue oil drain plug and makes oil changes easier, cleaner, and less time consuming.

  • One Touch Operation.
  • Allows for clean and mess free oil changes.
  • Safely change your oil without contacting hot oil.
  • Eliminates stripped threads and frozen plugs.
  • Simple to install and operate.
  • Reduces time to complete an oil change.
  • Ideal for sampling analysis as a small amount of oil can be drawn without shutting off the engine.

Safety

  1. Drive carefully at all times, and if you run over any foreign object on the road pull over and check the valve for any damage or leak.
  2. N-Series valve (with nipple to accept hose) is not recommended for passenger cars with low clearance.

Lifetime Limited Warranty

Fumoto offers a LIFETIME LIMITED WARRANTY on its product, against faulty workmanship and/or material to the original purchaser (with proof of purchase). For any defective product, Fumoto Engineering of America will replace the product at no charge. This warranty does not cover any damages due to misuse, abuse, negligence or accident. This warranty is valid only in the United States and Canada.
