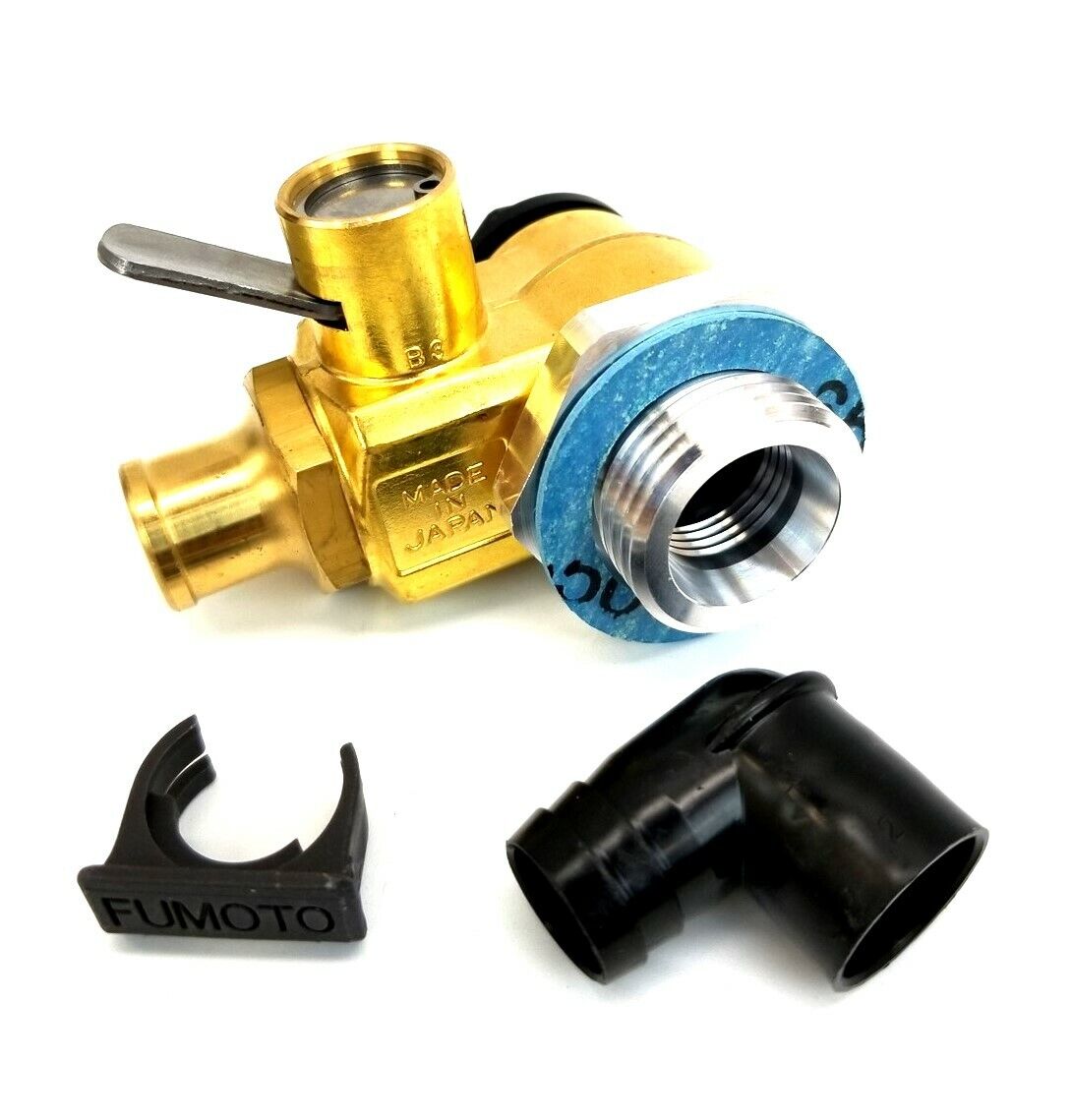

Fumoto FG2SX Quick Oil Drain Valve M18-1.5 for Heavy Truck and Equipment

M18-1.5 DRAIN VALVE W/NIPPLE
Fits:
Caterpillar 3116 & 3126E with 2L oil pan.
Cat C7, C9 & 3126 with bottom drain port.
Cummins B-Series (3.3L, 3.9L & 5.9L),
C-Series (8.3L), ISB, ISC, ISL engines (Most)
Dodge Ram Pick Up 6.7L
International DT466 ('05 & on), DT, 9, 10
Mitsubishi Fuso Heavy/Medium duty trucks
Paccar PX-6, PX-7, PX-8, PX-9

Incorporating Fumoto's larger size ball valve,
the FG2SX Oil Drain Valve is specifically
designed for heavy duty trucks, construction
equipment and industrial engines. The new
FG2SX is 360° rotatable for easier clearance,
and is larger than the F104N and with a higher
flow rate. Ideal for fleet maintenance, FG-SX
series valves are designed with an integrated
nipple for attaching a drainage hose, making
scheduled oil changes easier, faster and
cleaner. Constructed of forged brass and
stainless steel to exacting Japanese
specifications, FGN series valves are designed
to provide a lifetime of dependable and
reliable service. Includes safety clip and snap
on elbow.

Specifications

• Diameter: 18 mm
• Thread Pitch: 1.5
• Gasket: 18 mm
• Nipple Dimension: 5/8" - 16mm
• Nipple Length: 5/8" - 15 mm
• Weight: 5 oz

The Fumoto Engine Oil Drain's spring assisted ball
valve replaces your standard issue oil drain plug
and makes oil changes easier, cleaner, and less
time consuming.

• One Touch Operation.
• Allows for clean and mess free oil changes.
• Safely change your oil without contacting hot oil.
• Eliminates stripped threads and frozen plugs.
• Simple to install and operate.
• Reduces time to complete an oil change.
