EZ-103 EZ Oil Drain Valve - (12mm-1.25) - Replaces F-133.

Sold out
$19.98
SKU EZ103(01

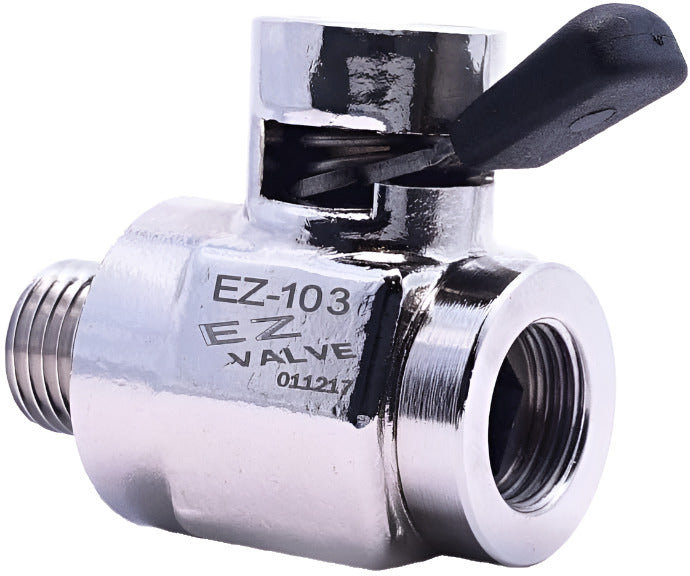

EZ Oil Drain Valve EZ-103(12mm-1.25)

Replace your oil drain plug to this EZ Oil Drain Valve for quick, easy and clean Oil Change!
Please check the application chart at the bottom of this page for applicable vehicles/engines.

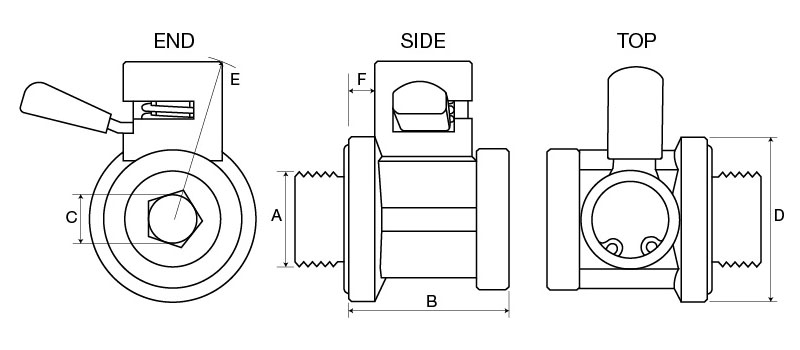

EZ-103 oil drain valve Measurement:


A: Thread
    12mm-1.25

B: 26.5mm

C: 7.5mm

D: 27mm

E: 26mm

F: 4.5mm



 EZ OIL DRAIN VALVE NEW FEATURES

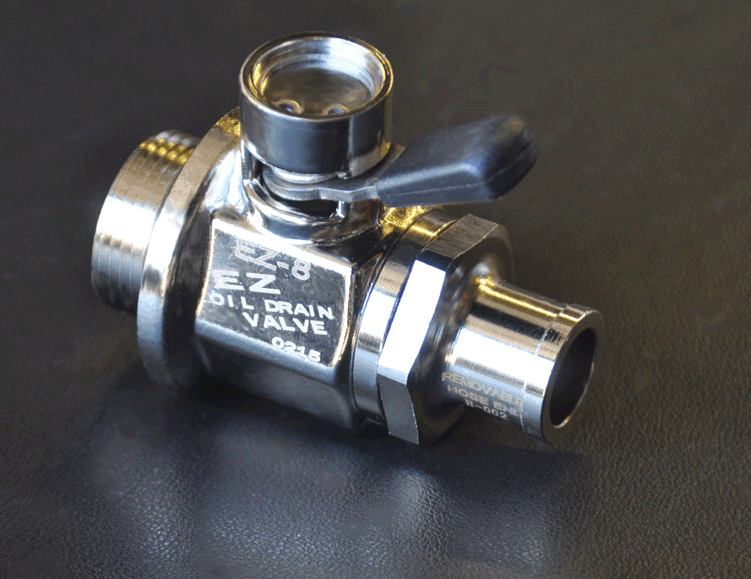

OPTIONAL HOSE ENDS(3/8" OD) is available - Straight(H-001) and L-Shaped(L-002)

Flexible Draining Options: Optional Hose Ends are available (Straight shape or L-shape, 3/8" OD) for added convenience. Connect a hose for easy draining. Hose Ends can be attached to the valve, and removed from the valve at any time.
Please beware this item is valve only. Hose end is not included.
Please visit our e-bay store ) you can find a "valve & hose end combo pack" or a "hose end".

Removable straight hose end     Straight Hose End for small valves (part number H-001) *sold separately

Removable straight hose end    L-Shape Hose End for small valves (part number L-001) *sold separately

* Hose Ends or "valve and hose end combo packs" are available at our e-bay store


LEVER HANDLE COVER

Easy Opening & Closing: Our ergonomic lever handle cover makes turning the lever easy on your fingers.
No more "hard-to-turn" or stiff levers!

Padded lever

NICKEL PLATED BODY

Plated & Protected: Additional nickel-plating offers more protection and prevents brass from natural tarnishing.  You'll see that your valve will look good and work for many years to come.

VITON O-RING

Better Fit & Seal: An embedded Viton O-ring on the flange of the valve provides a perfect seal where the oil pan and valve meet.  No need for extra crush washers or gaskets! And no more lost or cracked gaskets!

Viton O-ring

LAZER ETCHED PART NUMBER

Easy Part Number Identification: Part # are laser etched on the valve for easy part # ID.  With over 30 different valve sizes, you'll find the valve that fits your needs.  (Showing part number in the photo is sample)



Lazor etched part number



  • Eliminates Stripped Thread
  • No More Contact With Hot Oil, No More Burned Hands
  • No Messy Hands, Clothes and Floor
  • Easy Installation
  • Guaranteed Safety and Quality
  • The ball valve design provides a straight flow for efficient drainage
  • Frozen drain plug and stripped threads are eliminated forever
  • Drawing samples for oil analysis is as easy as one-two-three

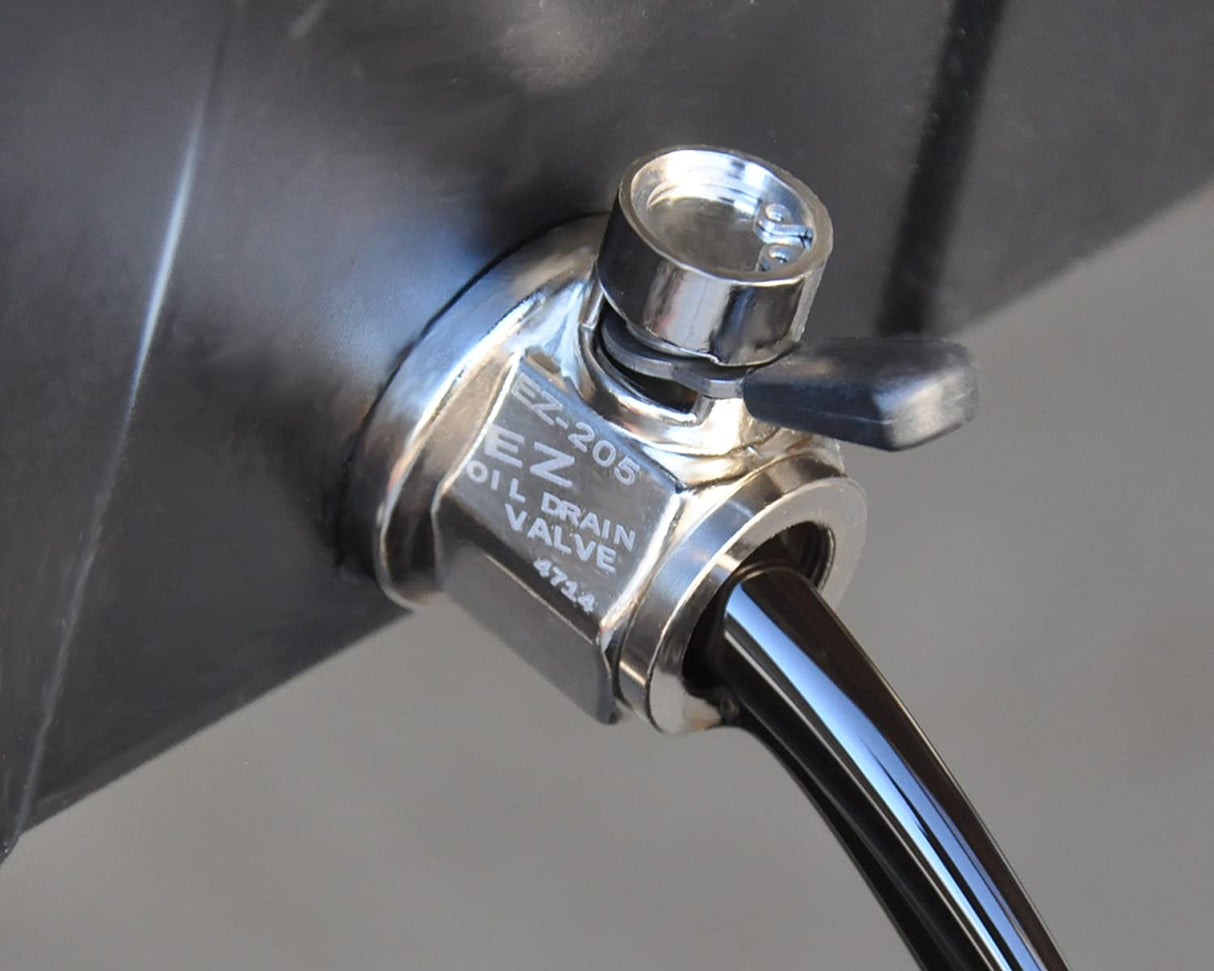

Install this valve and you can drain your engine oil without tools and without mess. Just lift the lever of this solid brass ball valve and give it a quarter turn to open it. Return the lever to its original position and it locks closed, double sealed to prevent leakage. The EZ Oil Drain Valve is made of corrosion resistant forged brass and stainless steel. The ball valve design provides a straight flow for efficient drainage and a perfect seal when closed. Frozen drain plug and stripped threads are eliminated forever. Drawing samples for oil analysis is as easy as one-two-three.

Cutaway Spec
