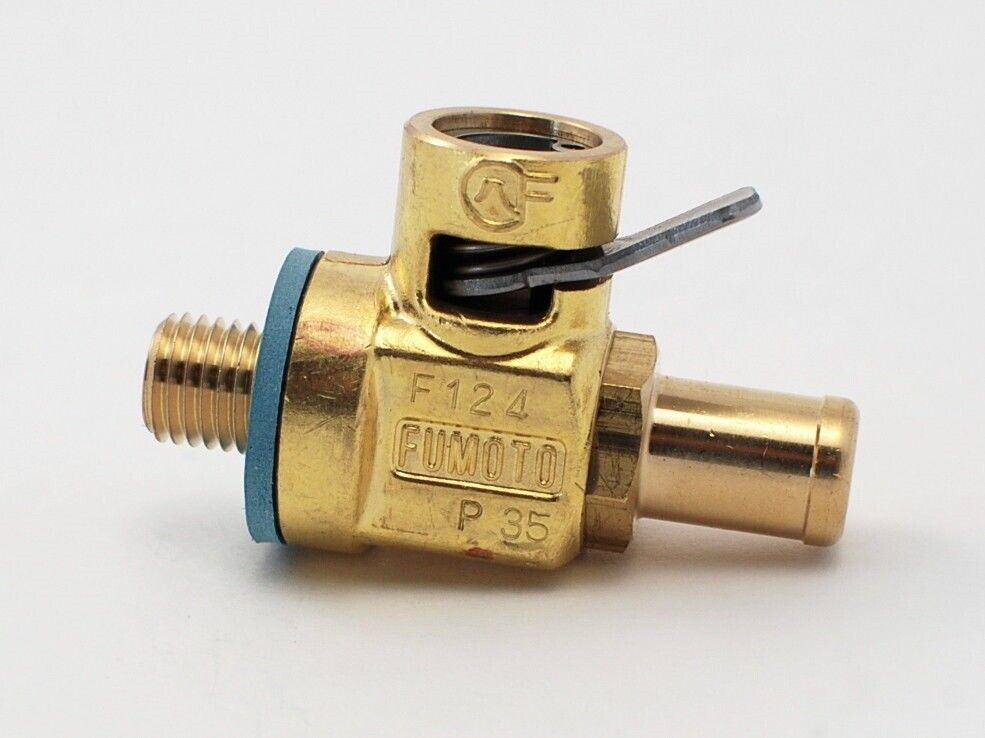

Fumoto F124N Quick Oil Drain Valve with Nipple M10-1.25 Thread - Made in Japan

SKU F124N(01

Incorporating Fumoto's most compact ball valve, Fumoto's FN
series valves are designed to fit cars, light trucks, vans and
select commercial engines. These models are equipped with
a nipple which allows a hose to be attached for convenient
draining. Constructed of forged brass and stainless steel to
exacting Japanese specifications, the FN series valves are
designed to provide a lifetime of dependable and reliable

NOTE: The FN series are NOT RECOMMENDED for engines
with low ground clearance.

Diameter: 10 mm
Thread Pitch: 1.25
Gasket: 10 mm
Nipple Dimension: 3/8" - 10 mm
Nipple Length: 5/8" - 15 mm
Weight: 2.7 oz

The Fumoto Engine Oil Drain's spring assisted ball valve
replaces your standard issue oil drain plug and makes oil
changes easier, cleaner, and less time consuming.

One Touch Operation.
  • Allows for clean and mess free oil changes.
  • Safely change your oil without contacting hot oil.
  • Eliminates stripped threads and frozen plugs.
  • Simple to install and operate.
  • Reduces time to complete an oil change.
  • Ideal for sampling analysis as a small amount of oil can be
  • drawn without shutting off the engine.
  • Installation and Operation


Drive carefully at all times, and if you run over any foreign
object on the road pull over and check the valve for any
damage or leak. N-Series valve (with nipple to accept
hose) is not recommended for passenger cars with low

Lifetime Limited Warranty

Fumoto offers a LIFETIME LIMITED WARRANTY on its
product, against faulty workmanship and/or material to the
original purchaser (with proof of purchase). For any
defective product, Fumoto Engineering of America will
replace the product at no charge. This warranty does not
cover any damages due to misuse, abuse, negligence or
accident. This warranty is valid only in the United States
and Canada.
